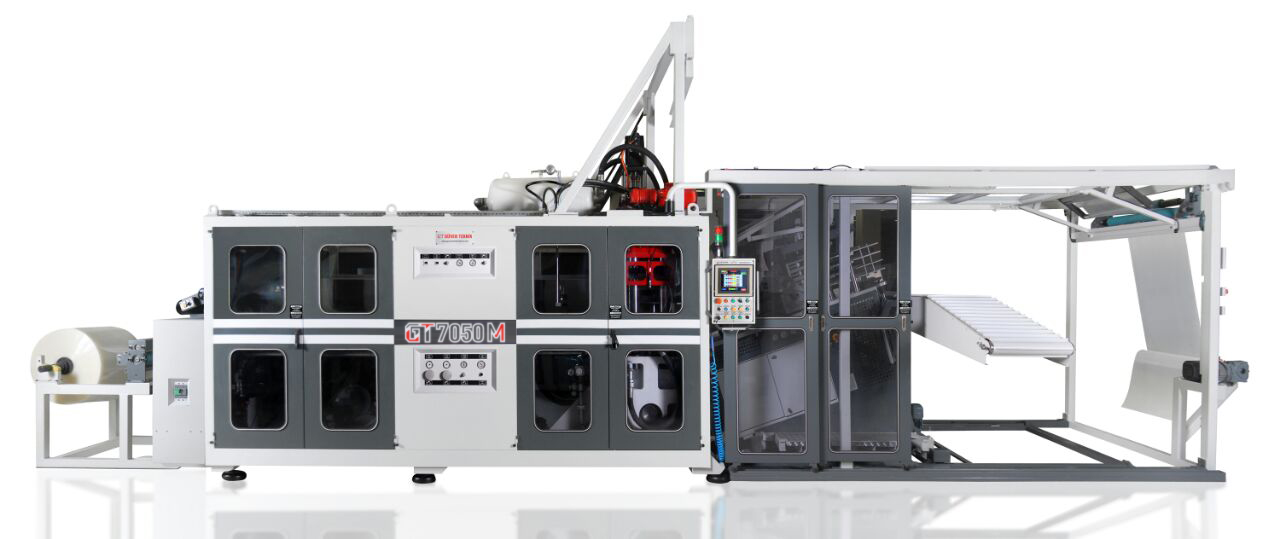

GT7050 M Thermoforming Machine

• Effective forming area : 700×550 mm.
• Extra reinforced monolithic body and reinforced mould holding and cutting systems.
• Maximum forming depth : 150 mm.
• Speed : Max 45 production cycle ( 71mm-1.5 gr PP )
• Production material : PP, PET, PS
• Max width of sheet : 710 mm
• Power : Three – phase neutral + G 3/PE, 50 Hz, 400 V
• Electric consumption : 70 Kw/h (71mm-1.5 gr pp )
• No need preheating with the advanced heaters design.
• Niddle bearing systems for mould holder arms and moving systems.
• Omron Servo Drive main motor
• Omron Servo drive plug assist Motor (with automatic lubrication)
• Omron Servo drive chain pulling engine.
• Sew Eurodrive Gear Box.
• Becker Brand (German) vacuum Pump.
• Bekamax Brand (German) automatic central greasing.
• Pfannenberg Brand (German) air conditioner for electric cabin.
• Elstain Brand (German) H Series Ceramics heaters.
• SMC brand (Japan) grease-free operating pneumatic valves.
• Mac brand (American) forming valves.
• Full automatic Omron motion control operation.
• 24 area controlled upper pan heat controlling.
• 4 area controlled lower pan heat controlling.
• 10 year warranty for machine cam.
• 5 years warranty for special design chain guides.
• 5 years warranty for plug assist mechanic system.
• 1 year warranty for general parts and electtronic parts.
• Powered solid main body for high speed.
• Special design cam system for high speed.
• Special production steell ejector pistons.
• Motorized PLC control cutting design.
